Elevate Your Filtration Prowess with Duplex Basket Strainers
About Us
We are the Best Duplex Basket Strainer Manufacturer in Singapore
Cadalan, a leading Duplex Basket Strainer manufacturer in Singapore, with 10+ years of expertise, is dedicated to supplying components with precision, innovation, and customer satisfaction. Our dedication to excellence in the outstanding craftsmanship of our various range of strainers, carefully designed to meet the needs of industries such as manufacturing and processing. pharmaceuticals, marine, textile and cement industries. At Cadalan, we’re all about embracing new technologies and sustainable practices, constantly pushing barriers to reach new heights in durability and performance. Our deep-rooted commitment to delivering top-quality products and putting our customers first is what earns us trust from people worldwide. Our Product presence extends across global with a strong presence in USA, UK, Australia, Saudi Arabia, Qatar, UAE, Africa, Thailand, Vietnam, New Zealand, Oman, Indonesia.
Product Specifications

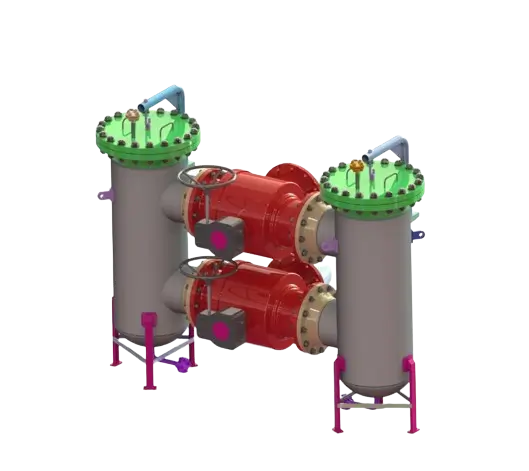

Duplex Basket Strainer
A duplex basket strainer is a key tool in industrial filtration, removing unwanted particles from flowing fluids in pipelines used to maintain continuous flow for increased filtration levels. The term “duplex” refers to the design of the strainer, which includes two separate basket chambers. In Cadalan, we have duplex basket strainer sizes up to 24 inches, and classes from #150 to #2500.
Cadalan is a top-notch Duplex Basket Strainer manufacturer in Singapore that uses precise engineering, thoughtful material selection, and remarkable efficiency. Throughout the production process, rigorous quality control measures are implemented to maintain the highest standards of quality. These measures include thorough testing for pressure resistance, flow capacity, and filtration efficiency. As a result, the basket strainer delivers efficient filtration, removing contaminants from fluid streams with ease.
- Upto 24 inches
- Class: #150 upto #2500
Fabricated Type Duplex Basket Strainer
- Carbon Steel - ASTM A106 GR B/C , API 5L X65, A333 GR 6 , ASTM A671
- Stainless Steel - ASTM A312 TP316/316L , ASTM A35t TP316/316L
- Duplex Stainless Steel - ASTM A928 S31803 , ASTM A790 S31803
- Super Duplex Stainless Steel - ASTM A928 S32750/32760 , ASTM A790 S32750/32760
- Nickel Aluminium Bronze Alloy - ASTM B14t C95800
- Monel - ASTM B165 K400/k500 ( UNS N05400 /UNS N04400 )
Casting Type Duplex Basket Strainer
- Carbon Steel - A216 WCB/ CFt8/CF8M - ASTM A106 B
- Low-Temperature Carbon Steel - A352 GR.LCC/CF3M
- Stainless Steel - SS316/ SS304
- Duplex Stainless Steel - A995 GR.4A / A995 GR.5A
- Nickel Aluminium Bronze Alloy - ASTM B14t C95t00/ UNSNO662
- Monel - UNSN04400 / UNSNO5500
- Inconel - UNS NO6625 & Titanium
Our Dimension Chart for Duplex Basket Strainer in Detail
Ensure precision with your selection by reviewing the dimensions of our Duplex Basket strainers below
| SIZE | DIMENSIONS | WEIGHTS | |||||||||||||||||||
| A (END TO END) | B (HORIZONTAL) | C (VERTICAL) | D (FILTER REMOVAL) | ||||||||||||||||||
| CLASS 150 | CLASS 300 | CLASS 150 | CLASS 300 | CLASS 150 | CLASS 300 | CLASS 150 | CLASS 300 | CLASS 150 | CLASS 300 | ||||||||||||
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | LBS | KGS | LBS | KGS |
| 2 | 50 | 10.43 | 265 | 10.55 | 268 | 5.04 | 128 | 5.04 | 128 | 5.94 | 151 | 6.30 | 160 | 10.83 | 275 | 11.81 | 300 | 30.86468 | 14 | 44.09 | 20 |
| 3 | 80 | 12.28 | 312 | 13.07 | 332 | 6.77 | 172 | 6.77 | 172 | 7.20 | 183 | 7.20 | 183 | 13.39 | 340 | 14.17 | 360 | 57.32012 | 26 | 79.37 | 36 |
| 4 | 100 | 14.33 | 364 | 15.04 | 382 | 8.27 | 210 | 8.27 | 210 | 8.23 | 209 | 8.90 | 226 | 16.14 | 410 | 16.34 | 415 | 83.77556 | 38 | 127.87 | 58 |
| 6 | 150 | 18.27 | 464 | 19.06 | 484 | 11.26 | 286 | 11.26 | 286 | 10.28 | 261 | 11.10 | 282 | 20.47 | 520 | 20.47 | 520 | 141.09568 | 64 | 249.12 | 113 |
| 8 | 200 | 22.05 | 560 | 22.76 | 578 | 14.02 | 356 | 14.02 | 356 | 12.28 | 312 | 13.19 | 335 | 24.41 | 620 | 25.00 | 635 | 231.4851 | 105 | 379.19 | 172 |
| 10 | 250 | 25.04 | 636 | 26.30 | 668 | 17.01 | 432 | 17.01 | 432 | 13.86 | 352 | 15.16 | 385 | 28.35 | 720 | 29.13 | 740 | 330.693 | 150 | 597.45 | 271 |
| 12 | 300 | 29.06 | 738 | 30.31 | 770 | 20.00 | 508 | 20.00 | 508 | 15.91 | 404 | 18.43 | 468 | 32.68 | 830 | 32.28 | 820 | 493.83488 | 224 | 873.03 | 396 |
| 14 | 350 | 31.97 | 812 | 33.23 | 844 | 21.97 | 558 | 21.97 | 558 | 17.48 | 444 | 18.86 | 479 | 35.83 | 910 | 32.68 | 830 | 650.3629 | 295 | 1179.47 | 535 |
| 16 | 400 | 34.02 | 864 | 35.51 | 902 | 24.02 | 610 | 24.02 | 610 | 18.58 | 472 | 20.16 | 512 | 38.58 | 980 | 38.98 | 990 | 837.7556 | 380 | 1521.19 | 690 |
| 18 | 450 | 38.03 | 966 | 39.53 | 1004 | 27.01 | 686 | 27.01 | 686 | 20.71 | 526 | 22.24 | 565 | 43.31 | 1100 | 43.90 | 1115 | 1042.78526 | 473 | 1940.07 | 880 |
| 20 | 500 | 41.42 | 1052 | 42.76 | 1086 | 30.00 | 762 | 30.00 | 762 | 22.52 | 572 | 24.02 | 610 | 47.24 | 1200 | 47.64 | 1210 | 1327.18124 | 602 | 2425.08 | 1100 |
| 24 | 600 | 46.06 | 1170 | 47.32 | 1202 | 34.02 | 864 | 34.02 | 864 | 25.04 | 636 | 26.54 | 674 | 53.82 | 1367 | 51.57 | 1310 | 1924.63326 | 873 | 3644.24 | 1653 |
Sizing the mesh filter for a Duplex Basket strainer
The efficiency of filtration in a duplex basket strainer relies heavily on the size of the mesh and micron. Mesh size denotes the quantity of openings per inch in the strainer screen, whereas micron size indicates the dimensions of particles the strainer can trap.
A lower mesh size implies larger openings, which are effective for capturing bigger particles, while a higher mesh size indicates smaller openings, ideal for finer filtration. The micron size denotes the diameter of particles that the strainer can filter out, with smaller micron sizes indicating better filtration capabilities for finer particles.
Choosing the right mesh and micron sizes according to the needs of the application allows duplex basket strainers to efficiently eliminate contaminants from fluid streams, guaranteeing the integrity and quality of the process.
What is Mesh Size:
- Unit of Measurement: Mesh size is typically expressed in terms of the number of openings per linear inch.
- Definition: Mesh size refers to the number of openings per linear inch in a strainer or filter. It is often used in woven wire mesh or perforated plate filters.
What is Micron Size:
- Unit of Measurement: Micron (µm) is a metric unit of length equal to one-millionth of a meter.
- Definition: Micron size refers to the diameter of a particle that can pass through an opening in a strainer or filter
Dimension Chart
| Mesh Size | Microns | Inches |
|---|---|---|
| 3 | 6730 | 0.265 |
| 4 | 4760 | 0.187 |
| 5 | 4000 | 0.157 |
| 6 | 3360 | 0.132 |
| 7 | 2830 | 0.111 |
| 8 | 2380 | 0.0937 |
| 10 | 2000 | 0.0787 |
| 12 | 1680 | 0.0661 |
| 14 | 1410 | 0.0555 |
| 16 | 1190 | 0.0469 |
| 18 | 1000 | 0.0394 |
| 20 | 841 | 0.0331 |
| 25 | 707 | 0.028 |
| 30 | 595 | 0.0232 |
| 35 | 500 | 0.0197 |
| 40 | 400 | 0.0165 |
| 45 | 354 | 0.0138 |
| 50 | 297 | 0.0117 |
| 60 | 250 | 0.0098 |
| 70 | 210 | 0.0083 |
| 80 | 177 | 0.007 |
| 100 | 149 | 0.0059 |
| 120 | 125 | 0.0049 |
| 140 | 105 | 0.0041 |
| 170 | 88 | 0.0035 |
| 200 | 74 | 0.0029 |
| 230 | 63 | 0.0024 |
| 270 | 53 | 0.0021 |
| 325 | 44 | 0.0017 |
| 400 | 37 | 0.0015 |
Usages
Applications Of The Duplex Basket Strainer
Why Choose Cadalan For Duplex Basket Strainer in Singapore
Cadalan - The Best Duplex Basket Strainer Manufacturer in Singapore
Cadalan is a trusted Duplex Basket Strainer Manufacturer in Singapore, known for its unwavering commitment to quality assurance, backed by over 10 years of industry experience. With a global presence, Cadalan serves clients worldwide, offering reliable and efficient solutions for diverse industrial applications. The company’s dedication to excellence has earned it a stellar reputation among clients, making it the preferred choice for those seeking top-tier basket strainers
Decade of Expertise
Trust our decade-long expertise in designing reliable basket strainers that keep your systems running smoothly.
Global Reach
From New York to Tokyo, our basket strainers are trusted worldwide for their quality and performance.
Quality Assurance
Our basket strainers are built to last, ensuring your systems are protected from debris and contaminants.
100+ Happy Clients
Join our satisfied clients who rely on our basket strainers to maintain their industrial processes with ease.
Need an industrial solution? We've got your back!
Features And Benefits Of The Duplex Basket Strainer
Duplex Design:
The duplex design of the basket strainer incorporates two chambers, allowing for continuous operation even during maintenance. This unique feature ensures uninterrupted fluid flow, a critical factor in industries requiring constant processing.
Removable Basket:
The strainer is equipped with a removable basket, simplifying maintenance procedures. This allows for easy cleaning or replacement without the need to shut down the entire system, minimizing downtime and contributing to efficient operational practices.
Material Options:
Duplex basket strainers offer versatility in construction materials, including stainless steel, alloys, and specialty coatings. This flexibility allows customization based on specific application requirements, ensuring optimal performance in various operating conditions.
Benefits of Duplex Basket Strainer:
Continuous Operation:
The duplex design’s ability to operate continuously, even during maintenance, enhances overall system reliability. It ensures a consistent and uninterrupted flow of fluids, vital for industries with stringent production schedules.
Reduced Downtime:
The presence of a removable basket simplifies maintenance tasks, significantly reducing downtime. Quick and efficient removal for cleaning or replacement streamlines operational processes, contributing to increased efficiency and productivity.
Effective Filtration:
Duplex basket strainers provide effective filtration by capturing a diverse range of particles and contaminants. This not only prevents damage to downstream equipment but also contributes to the longevity of critical components, ensuring sustained system efficiency.
Selection Criteria of Right Duplex Basket Strainer
Flow and Filtration Requirements:
Evaluate the required flow rate and particle size filtration, ensuring the duplex basket strainer is capable of handling the specific demands of the industrial process, preventing clogs, and maintaining efficiency.
Material Compatibility:
Assess the strainer’s material compatibility with the processed fluid, selecting materials that resist corrosion and chemical degradation to ensure long-term reliability.
Operating Conditions:
Consider the system’s operating conditions, such as temperature and pressure, ensuring the chosen strainer is designed to withstand and operate effectively within the specified environment.
Ease of Maintenance:
Examine the strainer’s design for ease of maintenance, prioritizing features like a removable basket and quick-opening cover to minimize downtime and streamline maintenance procedures.
Compliance and Reputation:
Verify the strainer’s compliance with industry standards, and certifications, and choose a supplier with a reputable track record, ensuring product quality, reliability, and excellent customer support.
We Work Globally
Our Clients
With a strong focus on durability, efficiency, and customer satisfaction,
we pride ourselves on delivering reliable filtration solutions trusted by clients across the globe.
___Testimonials
The Best Industry
The Best Industry
The Best Industry
Connect
Get Into Touch
Your Questions
Frequently Asked Questions
To clean a duplex basket strainer, shut down the system, remove the cover, extract the basket, inspect, and clean it, and then clean the housing before reassembling.
Install a Duplex basket strainer by aligning it with the pipeline, securing bolts, and connecting pipes; then open valves and follow manufacturer guidelines for proper system initiation.
A Duplex basket strainer has two chambers for continuous operation during maintenance, offering uninterrupted flow, while a Simplex basket strainer has a single chamber, requiring system shutdown for cleaning or maintenance. Duplex provides enhanced efficiency and reduced downtime in fluid filtration systems.
A Duplex basket strainer operates by using two chambers with separate baskets, enabling continuous fluid flow during maintenance by alternating between chambers, ensuring uninterrupted filtration in industrial processes.
Yes, duplex basket strainers can be used in corrosive environments by selecting corrosion-resistant materials like stainless steel or alloys, ensuring durability and reliability in challenging industrial conditions.
Duplex basket strainers are commonly constructed from materials such as stainless steel, carbon steel, alloys, and specialty coatings. The choice of material depends on factors like corrosion resistance, fluid compatibility, and specific application requirements in various industries
For assistance or inquiries related to Cadalan duplex basket strainers, please contact our customer support team through our hotline at [provide phone number] or email us at [provide email address]. Our dedicated team is ready to address your concerns promptly.
The typical lifespan of a duplex basket strainer varies based on factors like usage, maintenance practices, and operating conditions. With regular maintenance and adherence to guidelines, duplex basket strainers can offer prolonged operational life, contributing to reliable and efficient filtration over an extended period.
Yes, Cadalan can efficiently manage bulk orders of duplex basket strainers, ensuring timely production and maintaining high-quality standards to meet the demands of large-scale industrial applications.
